Assembly Devices
ASSEMBLY DEVICES

  • The wide range of drilling and insertion machines on offer from Blum ensures just the right solution no matter what the assembly-requirement.
  • Tailored to meet your requirements, our practical assembly devices optimise the assembly process for Blum box systems, even in smaller production runs
  • Blum templates and assembly devices support the assembly of all Blum products.
  • When using our assembly devices, you can be sure that you are getting a safe product. Our assembly devices carry the GS/CE label and therefore also correspond to the highest safety requirements of European standards and guidelines.

ORDERING CODE

M31.1000 – Ecodrill
Application/s:
Hinge system assembly for
CLIP top/CLIP top BLUMOTION, MODUL


65.9500 – Drilling template for Hinge Systems
Application/s:
Hinge system assembly for
CLIP top / CLIP top BLUMOTION, MODUL


65.059A – Drilling template for Hinges
Application/s:
Hinge system assembly for
CLIP top / CLIP top BLUMOTION, MODUL


65.5310 – Template
Application/s:
Hinge system assembly for
CLIP top / CLIP top BLUMOTION, MODUL


65.5070 – Drilling template for mounting plates
Application/s:
Hinge system assembly for
CLIP top / CLIP top BLUMOTION, MODUL


65.5010 – Drilling template for BLUMOTION / TIP-ON
Application/s:
BLUMOTION/TIP-ON assembly for AVENTOS, CLIP top


65.5000 – Drilling template for BLUMOTION
Application/s:
BLUMOTION assembly for
CLIP top / CLIP top BLUMOTION, MODUL


65.5210 – Positioning template for catch plate
Application/s:
TIP-ON assembly for AVENTOS, CLIP top


ZME.0710 – Knock-in tool for hinges
Application/s:
Hinge system assembly
for CLIP top / CLIP top BLUMOTION, MODUL


M31.2000 – Drilling template for SERVO-DRIVE switch
Application/s:
AVENTOS


65.5040 – Drilling template for connectors
Application/s:
Cabinet assembly for further products


T65.5000.01 – Drilling template set
Application/s:
Cabinet assembly for AVENTOS, CLIP top/
CLIP top BLUMOTION, MODUL
Runner assembly for TANDEMBOX Intivo / Antaro / Plus,
MOVENTO, TANDEM


65.1000.01 – Universal drilling template
Application/s:
Cabinet assembly for AVENTOS, CLIP top/
CLIP top BLUMOTION, MODUL
Runner assembly for TANDEMBOX Intivo / Antaro / Plus,
MOVENTO, TANDEM


65.1051.01 – Universal individual template
Application/s:
Cabinet assembly for AVENTOS, CLIP top/
CLIP top BLUMOTION, MODUL,
Runner assembly for TANDEMBOX Intivo / Antaro / Plus,
MOVENTO, TANDEM


ZML.1090 – Drilling template for distance bumper
Application/s:
SERVO-DRIVE assembly for AVENTOS, TANDEMBOX Intivo
/ Antaro / Plus, MOVENTO, TANDEM


T65.1000.02 – Drilling template for MOVENTO / TANDEM
Application/s:
Drawer assembly for MOVENTO, TANDEM


ZML.0050 – Drilling template for MOVENTO- / TANDEMfront fixing bracket
Application/s:
Drawer assembly for MOVENTO, TANDEM


ZML.0330 – Drilling template for SPACE CORNER w/ SYNCROMOTION
Application/s:
Drawer assembly for TANDEMBOX Intivo / Antaro / Plus


ZML.1150 – Drilling template for SERVO-DRIVE
bracket profile attachment
Application/s:
SERVO-DRIVE assembly for TANDEMBOX Intivo / Antaro /
Plus, MOVENTO, TANDEM


ZML.1290 – Test jack connector for SERVO-DRIVE
Application/s:
SERVO-DRIVE assembly for TANDEMBOX Intivo / Antaro /
Plus, MOVENTO, TANDEM


ZML.0040.01 – Universal drilling template
Application/s:
Front & Drawer assembly for AVENTOS, TANDEMBOX
Intivo / Antaro / Plus, MOVENTO, TANDEM


ZMM.3350 – BOXFIX M
Application/s:
TANDEMBOX Intivo / Antaro / Plus assembly

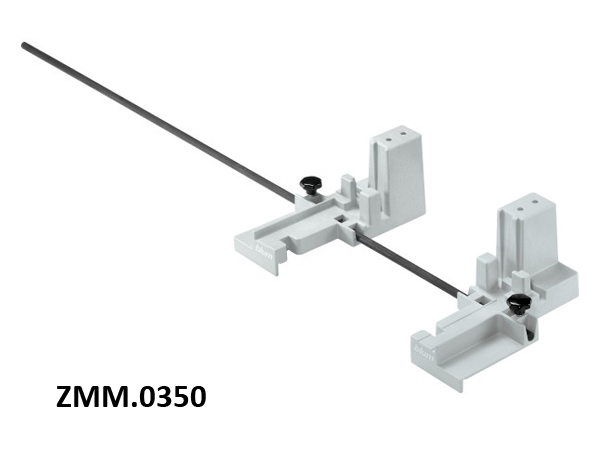

ZMM.0350 – BOXFIX E-T for TANDEMBOX
Application/s:
TANDEMBOX Intivo / Antaro / Plus assembly (screws)

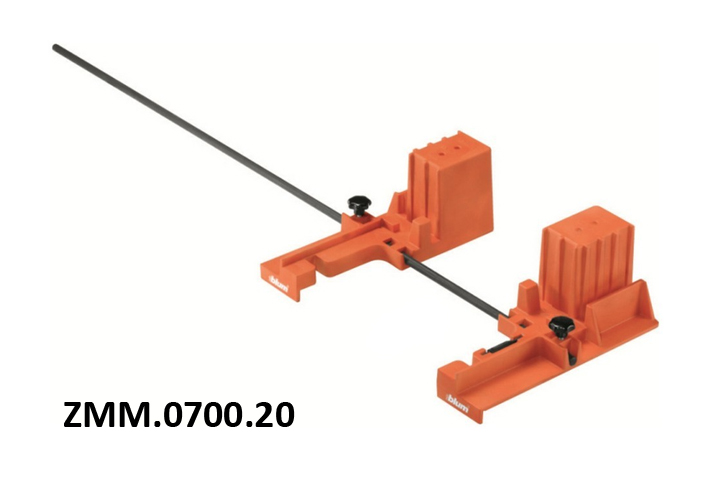

ZMM.0700.20 – BOXFIX E-L for LEGRABOX
Application/s:
LEGRABOX assembly (screws)


M35.7200.01 – Base router for LEGRABOX
Application/s:
LEGRABOX assembly


65.1106 – Drilling template stop for cabinet profile processing SPACE-CORNER
Application/s:
Universal individual template add-on for SPACE CORNER


65.0590 – INSERTA drilling gauge


ZML.1200 – Marking gauge, ID Z10 position, orange


SR.DREH.K-SCHL 2 – Philips screw driver, orange


SR.DREH TORX 20 – TORX screw driver, orange


M31.ZB08.02 – Ecodrill D35mm drill bit,
rotation right, length 86.2mm


M31.ZB35.02 – Fittings drill bit D35mm


MZL.2000 – Basic ruler, 1700mm, calibration: 850-0-850mm
MZL.2060 – Horizontal ruler, 1700mm, calibration: 850-0-850mm


MZS.1000 – Ruler stop, black zinc-plated
MZS.2000 – Ruler stop (narrow), black zinc-plated, left
MZS.2000 – Ruler stop (narrow), black zinc-plated, right


MZW.1300 – Ecodrill tool set


M53.1000 – MINIPRESS P – Drilling and insertion machine vertical drilling, 3-phase, 220 V, 60 Hz
ACCESSORIES:
Work table for MINIPRESS P – MZA.5300
Hold down clamp (pneumatic)
for MINIPRESS P – M53.0720
TOOLINGS:
TC Cylinder Boring bits
D=35, L1=70, S=10×26 LH – 00178982
TC Dowel Bit (2 pcs.)
D=8, L1=70, S=10×30 RH – 00003242
TC Dowel Bit
D=10, L1=70, S=10×30 RH – 00003250
TC Dowel Bit
D=10, L1=70, S=10×30 LH – 00003251

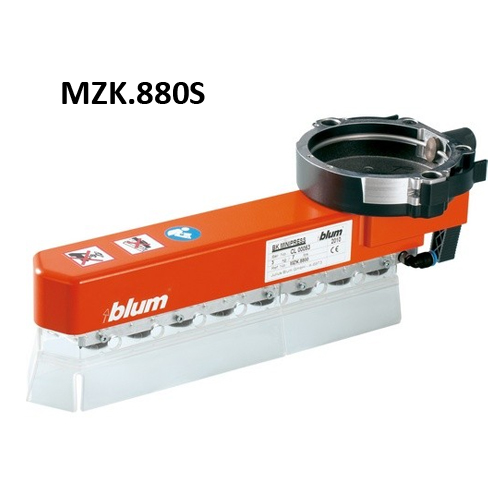

MZK.880S – Drilling head for MINIPRESS P
Number of spindles 8 w/ Quick connect chuck
Application/s: Cabinet profile/front fixing brackets


MZL.1250Extension ruler for MINIPRESS P
calibration 300mm to 1550mm
Required Qty.: 2 pcs/set


MZV.2100Support for extension ruler for MINIPRESS P
Required Qty.: 2 pcs/set


MZS.1000Swivel stop for MINIPRESS P
Required Qty.: 4 pcs/set


MZM.0040Insertion ramfor MINIPRESS P
Application/s: All standard hinges, knock-in
