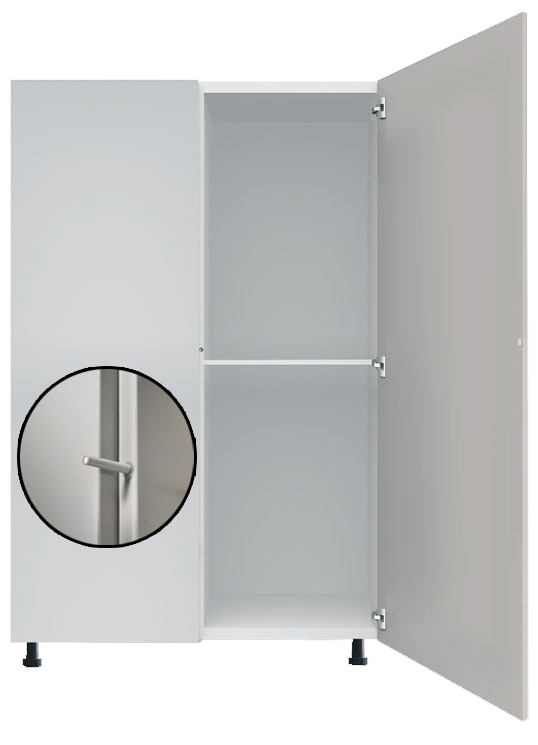

Extended Tip-on, 3-hinge applications (cruciform cam mounting plate)
  • Many application options.
  • Easy, tool-free assembly ang removal.
  • Comfortable 3-dimensional door adjustment.
  • TIP-ON — unsprung hinges are used in this application.

ORDERING CODES

TIP-ON for handle-less doors
(Tall Cabinet Applications, max. CCH=1500mm)

Drilling version
C100F3.CE3.TD – Clip 100° Full Overlay w/ extended TIP-ON
C100H3.CE3.TD – Clip 100° Half Overlay w/ extended TIP-ON
C100I3.CE3.TD – Clip 100° Inset w/ standard TIP-ON

CT107F3.CE3.TD – Clip 107° Full Overlay w/ extended TIP-ON
CT107H3.CE3.TD – Clip 107° Half Overlay w/ extended TIP-ON
CT107I3.CE3.TD – Clip 107° Inset w/ standard TIP-ON

CT110F3.CE3.TD – Clip 110° Full Overlay w/ extended TIP-ON
CT110H3.CE3.TD – Clip 110° Half Overlay w/ extended TIP-ON
CT110I3.CE3.TD – Clip 110° Inset w/ standard TIP-ON

CT120F3.CE3.TD – ClipTop 120° Full Overlay with extended TIP-ON
CT120H3.CE3.TD – ClipTop 120° Half Overlay with extended TIP-ON
CT120I3.CE3.TD – ClipTop 120° Inset with extended TIP-ON

CT155F3.CE3.TD – ClipTop 155° Full Overlay with extended TIP-ON
CT155H3.CE3.TD – ClipTop 155° Half Overlay with extended TIP-ON

CT170F3.CE3.TD – ClipTop 170° Full Overlay with extended TIP-ON
CT170H3.CE3.TD – ClipTop 170° Half Overlay with extended TIP-ON
CT170I3.CE3.TD – ClipTop 170° Inset with extended TIP-ON

Horizontal adapter version
C100F3.CE3.TH – Clip 100° Full Overlay w/ extended TIP-ON
C100H3.CE3.TH – Clip 100° Half Overlay w/ extended TIP-ON
C100I3.CE3.TH – Clip 100° Inset w/ standard TIP-ON

CT107F3.CE3.TH – Clip 107° Full Overlay w/ extended TIP-ON
CT107H3.CE3.TH – Clip 107° Half Overlay w/ extended TIP-ON
CT107I3.CE3.TH – Clip 107° Inset w/ standard TIP-ON

CT110F3.CE3.TH – Clip 110° Full Overlay w/ extended TIP-ON
CT110H3.CE3.TH – Clip 110° Half Overlay w/ extended TIP-ON
CT110I3.CE3.TH – Clip 110° Inset w/ standard TIP-ON

CT120F3.CE3.TH – ClipTop 120° Full Overlay with extended TIP-ON
CT120H3.CE3.TH – ClipTop 120° Half Overlay with extended TIP-ON
CT120I3.CE3.TH – ClipTop 120° Inset with extended TIP-ON

CT155F3.CE3.TH – ClipTop 155° Full Overlay with extended TIP-ON
CT155H3.CE3.TH – ClipTop 155° Half Overlay with extended TIP-ON

CT170F3.CE3.TH – ClipTop 170° Full Overlay with extended TIP-ON
CT170H3.CE3.TH – ClipTop 170° Half Overlay with extended TIP-ON
CT170I3.CE3.TH – ClipTop 170° Inset with extended TIP-ON
