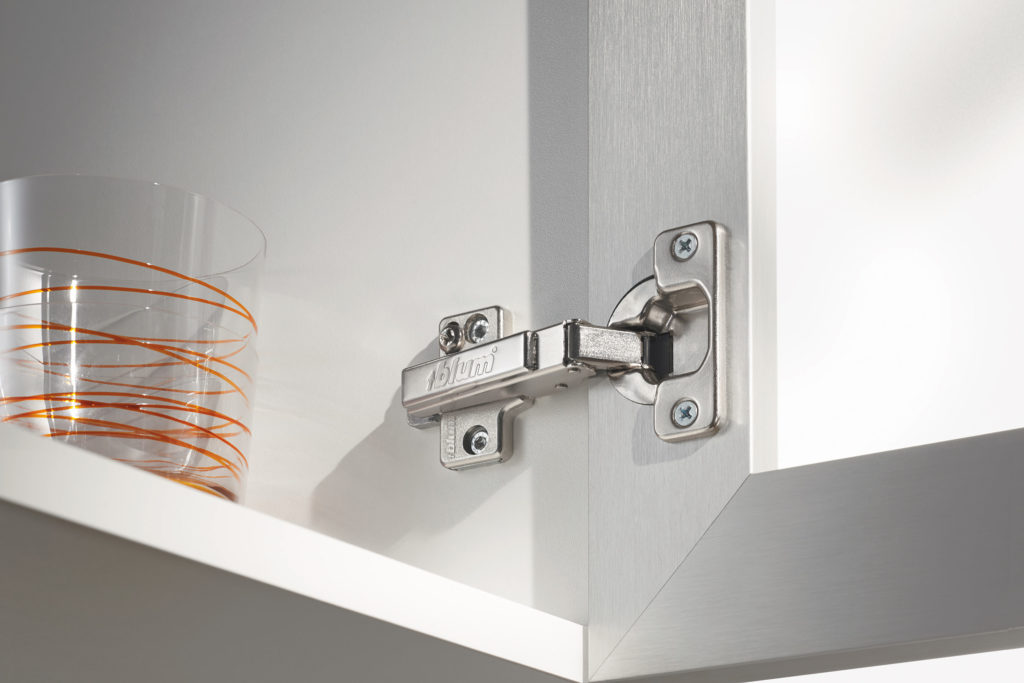

MODUL
The economical hinge system provides the right solution for many different applications. The system’s combined slide-on and screw-on feature has proven itself over the years.
  • Simple and easy slide-on assembly
  • Simple 3-way adjustment for perfect gap alignment

Ordering codes:

CRUCIFORM MOUNTING PLATE

M100F.C.C – MODUL 100° hinge, Full Overlay w/ cover cap
M100F.C.CB – MODUL 100° hinge, Full Overlay w/ cover cap
M100H.C.C – MODUL 100° hinge, Half Overlay w/ cover cap
M100H.C.CB – MODUL 100° hinge, Half Overlay w/ cover cap
M100I.C.C – MODUL 100°, Inset w/ cover cap
M100I.C.CB – MODUL 100°, Inset w/ cover cap


M100FE.CE.C – MODUL 100° expando hinge & mounting plate, Full Overlay w/ cover cap
M100FE.CE.CB – MODUL 100° expando hinge & mounting plate, Full Overlay w/ cover cap
M100HE.CE.C – MODUL 100° expando hinge & mounting plate, Half Overlay w/ cover cap
M100HE.CE.CB – MODUL 100° expando hinge & mounting plate, Half Overlay w/ cover cap
M100IE.CE.C – MODUL 100° expando hinge & mounting plate, Inset w/ cover cap
M100IE.CE.CB – MODUL 100° expando hinge & mounting plate, Inset w/ cover cap


M107F.C.C – MODUL 107° hinge, Full Overlay w/ cover cap
M107F.C.CB – MODUL 107° hinge, Full Overlay w/ cover cap
M107H.C.C – MODUL 107° hinge, Half Overlay w/ cover cap
M107H.C.CB – MODUL 107° hinge, Half Overlay w/ cover cap


M107F.CE.C – MODUL 107° hinge w/ expando mounting plate, Full Overlay w/ cover cap
M107F.CE.CB – MODUL 107° hinge w/ expando mounting plate, Full Overlay w/ cover cap
M107H.CE.C – MODUL 107° hinge w/ expando mounting plate, Half Overlay w/ cover cap
M107H.CE.CB – MODUL 107°hinge w/ expando mounting plate, Half Overlay w/ cover cap
